Introduction

Solid State Drives (SSDs) have revolutionized data storage, offering lightning-fast speeds compared to traditional hard disk drives (HDDs). However, not all SSDs are created equal. The interface—the bridge connecting the SSD to your system—is pivotal in determining performance, compatibility, and value. Whether upgrading a laptop, building a gaming PC, or managing enterprise servers, understanding SSD interfaces is crucial for your purchase. This guide breaks down the most common interfaces, their pros and cons, and how to choose the right one for your needs.

What Are SSD Interfaces?

An SSD interface defines how the drive communicates with your computer’s motherboard. It impacts three critical factors:

Speed: Bandwidth limits how much data can flow at once.

Compatibility: Not all interfaces work with every system.

Key Terminologies:

Interface: The physical connection (e.g., SATA, PCIe).

Protocol: The communication standard (e.g., AHCI, NVMe).

Form Factor: The drive’s shape and size (e.g., M.2, 2.5-inch).

Think of the interface as a highway, the protocol as traffic rules, and the form factor as the vehicle’s design. For example, a PCIe interface with the NVMe protocol is akin to a multi-lane freeway with optimized traffic signals, enabling data to move at breakneck speeds.

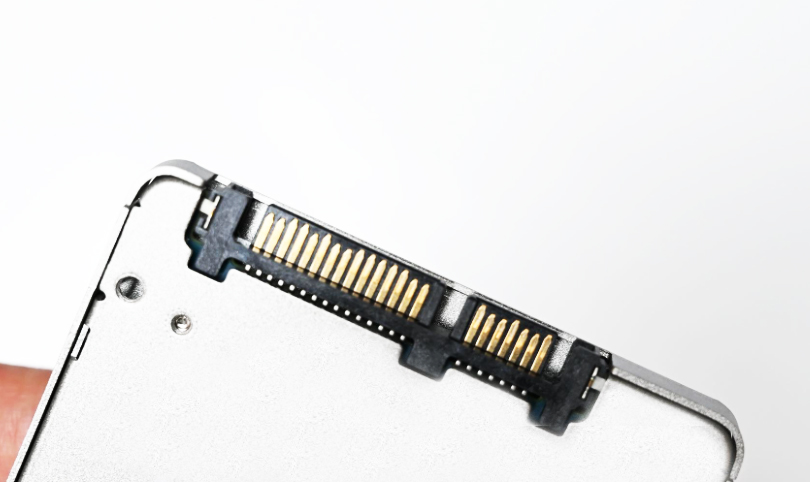

SATA: The Traditional Interface

Serial ATA (SATA) has been the standard for decades, evolving through SATA I (1.5 Gb/s), SATA II (3 Gb/s), and SATA III (6 Gb/s). Most modern SATA SSDs use SATA III, capping speeds at ~600 MB/s due to its 6 Gb/s bandwidth limit.

Performance:

Pros: Affordable, widely compatible with older systems, and easy to install in 2.5-inch drive bays.

Cons: Limited bandwidth compared to PCIe, higher latency due to the AHCI protocol.

Real-World Use Cases:

Budget-friendly builds (e.g., home PCs, office workstations).

Upgrading older laptops or desktops lacking M.2 slots.

Secondary storage for games, media, or backups where speed isn’t critical.

Limitations:

SATA’s AHCI protocol was designed for HDDs, creating bottlenecks for SSDs. For instance, queue depths (the number of commands processed at once) max out at 32, while NVMe supports 65,536 queues.

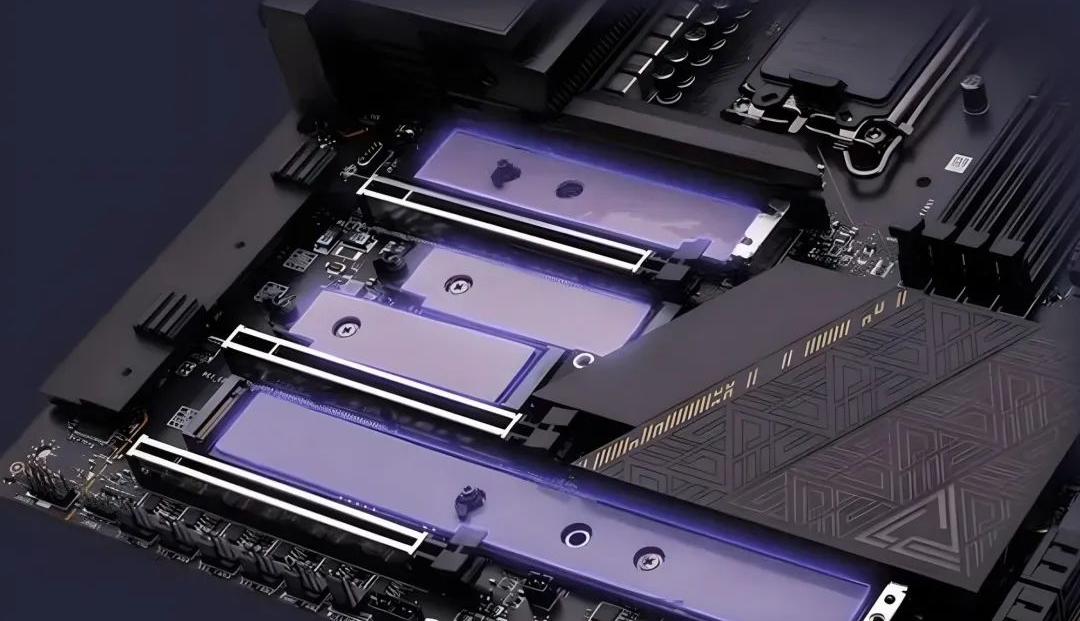

PCIe: The High-Speed Contender

PCI Express (PCIe) bypasses SATA’s bottlenecks by connecting directly to the CPU via high-speed lanes. Each generation doubles bandwidth:

PCIe 3.0: ~1 GB/s per lane (x4 lanes = 4 GB/s).

PCIe 4.0: ~2 GB/s per lane (x4 = 8 GB/s).

PCIe 5.0: ~4 GB/s per lane (x4 = 16 GB/s).

NVMe Protocol:

The NVMe (Non-Volatile Memory Express) protocol replaces the older AHCI standard, slashing latency by 50% and unlocking PCIe’s full potential. For example, the Samsung 980 Pro hits 7,000+ MB/s under PCIe 4.0, while PCIe 5.0 drives like the Sabrent Rocket 5 reach 14,000+ MB/s.

Form Factors:

M.2: A compact, versatile slot supporting SATA and PCIe SSDs.

Add-In Card (AIC): PCIe SSDs mounted directly into motherboard slots (common in servers).

Use Cases:

Gaming: Faster load times in titles like Cyberpunk 2077 or Microsoft Flight Simulator.

Content Creation: Editing 8K video in Adobe Premiere or rendering 3D models.

Data Centers: Handling thousands of simultaneous requests with low latency.

Compatibility Notes:

PCIe 4.0/5.0 requires modern CPUs (e.g., AMD Ryzen 5000/7000 or Intel 12th/13th Gen) and compatible motherboards. Older systems may only support PCIe 3.0.

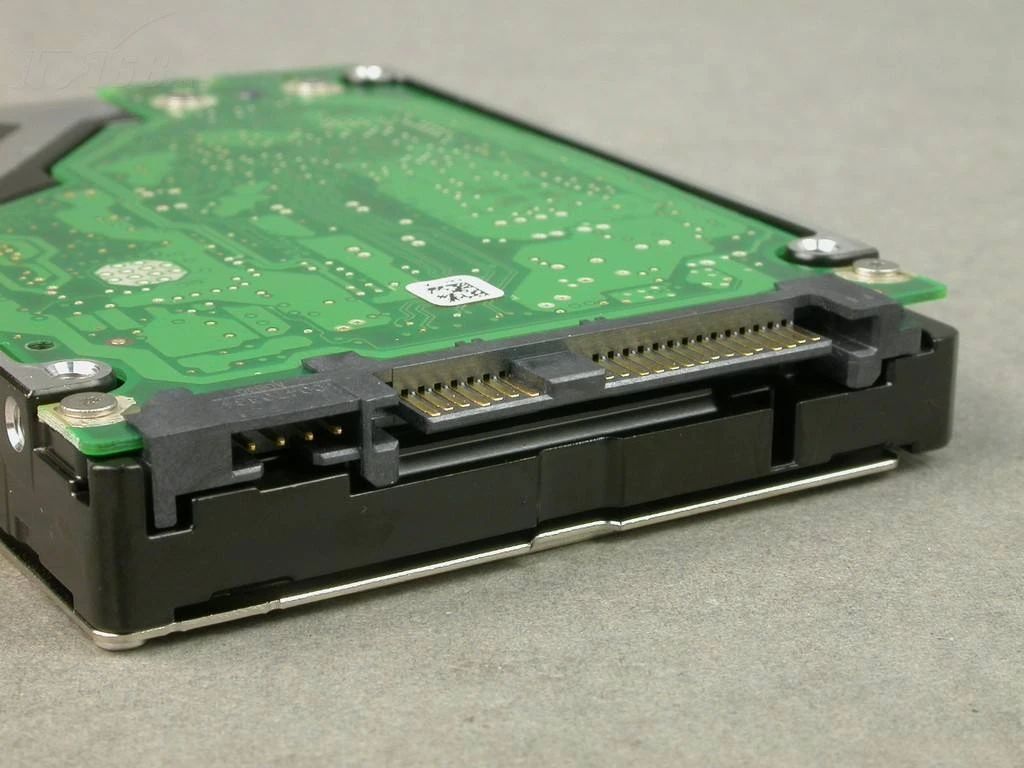

SAS: The Enterprise Powerhouse

Serial Attached SCSI (SAS) is the gold standard for enterprise environments, offering features like dual-port connectivity (allowing two systems to access one drive) and full-duplex communication (simultaneous read/write operations).

Performance:

SAS-3: 12 Gb/s (~1,200 MB/s) with support for deeper command queues.

Durability: SAS drives boast MTBF (Mean Time Between Failures) ratings of 2.5 million hours, far exceeding SATA’s 1 million.

Real-World Applications:

Data Centers: Redundant storage for cloud servers or virtualization.

Financial Institutions: High-frequency trading databases requiring zero downtime.

Drawbacks:

Cost: SAS drives are 2–3x pricier than SATA equivalents.

Complexity: Requires specialized controllers and HBAs (Host Bus Adapters).

Other Interfaces

USB/Thunderbolt:

USB 3.2 Gen 2x2: Offers 20 Gb/s speeds, ideal for portable SSDs.

Thunderbolt 3/4: Delivers 40 Gb/s bandwidth, enabling external NVMe SSDs to rival internal drives.

M.2 vs. U.2:

M.2: Dominates consumer markets with sizes like 2280 (22mm x 80mm).

U.2: A 2.5-inch enterprise form factor with PCIe x4 support, often used in servers.

Interface Comparison

Decision Flowchart:

Budget-Conscious? → SATA.

Need Speed for Gaming/Editing? → PCIe/NVMe.

Running a Server? → SAS.

Choosing the Right SSD Interface

Key Considerations:

Budget:

SATA: 50–50–100 for 1TB.

PCIe 4.0 NVMe: 80–150 for 1TB.

SAS: $200+ for 1TB.

System Compatibility:

Check motherboard specs for M.2 slot types (PCIe 3.0 vs. 4.0).

Older PCs may need a PCIe adapter card for NVMe boot drives.

Workload:

Casual Use: SATA suffices for web browsing and document editing.

Gaming/Editing: PCIe 4.0 NVMe minimizes load times and rendering delays.

Servers: SAS ensures reliability under heavy workloads.

Future-Proofing:

PCIe 5.0 drives are emerging but require compatible hardware. For most users, PCIe 4.0 offers a cost-effective balance.

Future Trends

PCIe 5.0 Adoption: Doubling PCIe 4.0 speeds, ideal for AI/ML workloads.

NVMe 2.0: Introduces features like Zoned Namespaces (ZNS) for improved endurance.

SATA’s Decline: Still relevant for HDD replacements but phased out in premium laptops and PCs.

Conclusion

PCIe NVMe strikes the best balance between speed and value for most users. SATA remains a reliable choice for upgrades, while SAS caters to enterprises. Prioritize your speed, cost, or reliability needs to make an informed decision.

FAQs

Q: Is NVMe the same as PCIe?

A: No. NVMe is a protocol that runs on PCIe interfaces.

Q: Can I use a PCIe SSD in a SATA slot?

A: No—they require different physical connectors. Check your motherboard’s M.2 support (PCIe vs. SATA).

Q: Which interface is best for gaming?

A: PCIe NVMe for faster load times, but SATA is sufficient if budget-limited.

Q: Are SAS drives worth it for home users?

A: Rarely—they’re expensive and designed for servers.

Q: Do PCIe 5.0 SSDs require cooling?

A: Yes! High-speed drives like the MSI Spatium M570 generate significant heat; heatsinks are recommended.

SSD Enclosures: A Quick Note

An SSD enclosure is an external casing that transforms an internal SSD (SATA or NVMe) into a portable, high-speed external drive. By connecting via USB or Thunderbolt, these enclosures let you repurpose old SSDs or create expandable storage for laptops, consoles, or backups.

Key Benefits:

Portability: Carry large files or games on the go.

Cost-Effective: Reuse an old SSD instead of buying a new external drive.

Flexibility: Choose between USB 3.2 (20 Gbps) or Thunderbolt 4 (40 Gbps) enclosures for NVMe SSD speeds.

Compatibility:

Ensure the enclosure matches your SSD’s interface (SATA or M.2 PCIe). Popular options like the Sabrent USB-C Tool-Free Enclosure or Orico M.2 NVMe enclosures offer plug-and-play simplicity.
