Ever faced these issues?
Your 4K monitor only outputs 1080P?
Game stutters with high latency—and the cable’s to blame?
Fast-charge device charges at a snail’s pace?
Chances are—you’re using the wrong cable!
In the era of high-resolution displays, high refresh rates, fast charging, and high-speed data transfer, cables aren’t just "connectors." They’re either a bottleneck or a performance booster.

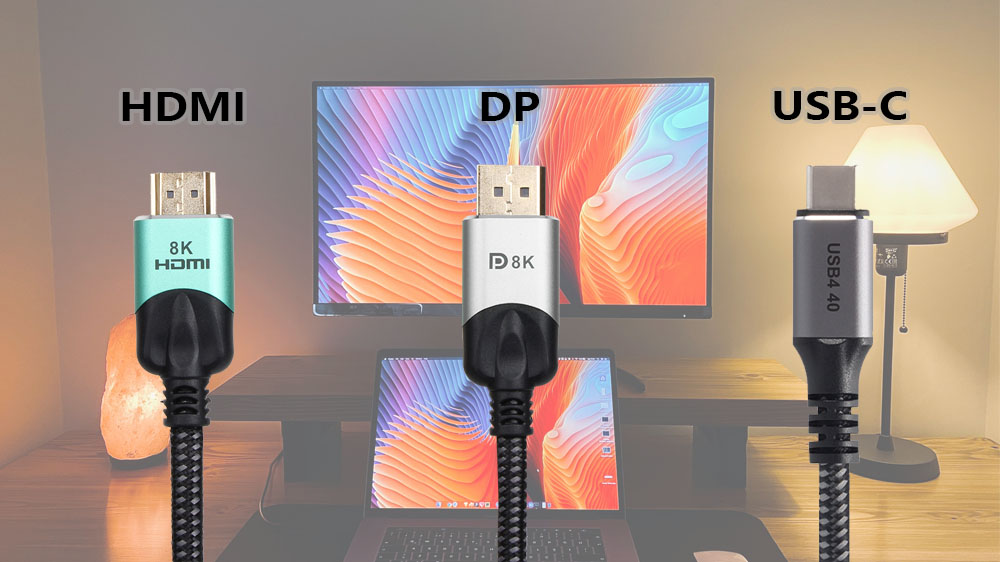

Let’s demystify HDMI, DisplayPort (DP), USB-C, and Fiber Optic cables—so you’ll never get shortchanged again!
1. Cables ≠ "Just Wires"
Many assume matching plugs means compatibility. Wrong! Identical ports can hide vastly different cable standards, affecting signal quality, speed, and functionality.
Key Examples:
HDMI: Versions 1.4, 2.0, 2.1—bandwidth varies wildly.
DP: Higher versions = higher resolutions & refresh rates.
USB-C: Charge-only, data-only, or video-capable—all look identical.
Fiber Optic: Enables long-distance, interference-free signals (but not universal).
2. HDMI: Not All Support 4K/120Hz!
| HDMI Version | Bandwidth | Max Resolution | 4K@120Hz? |
|---|---|---|---|
| HDMI 1.4 | 10.2 Gbps | 4K@30Hz | No |
| HDMI 2.0 | 18 Gbps | 4K@60Hz | No |
| HDMI 2.1 | 48 Gbps | 4K@120Hz / 8K@60Hz | Yes |
Even premium gear fails with outdated HDMI 1.4/2.0 cables.
Fix: Use HDMI 2.1 Certified cables (supports eARC, VRR, ALLM for gaming/AV).
3. DisplayPort: Gamers’ Go-To Choice
DP is the gold standard for high-refresh monitors (GPUs, gaming rigs, pro displays).
| DP Version | Bandwidth | Max Resolution/Refresh |
|---|---|---|
| DP 1.2 | 21.6 Gbps | 4K@60Hz |
| DP 1.4 | 32.4 Gbps | 4K@120Hz / 8K@60Hz |
| DP 2.0 | 80 Gbps | 8K@120Hz / Dual 4K@144Hz |
Cheap DP cables lack shielding/chips → flickering, artifacts, instability.
Fix: Opt for VESA-Certified DP 1.4/2.0 cables for critical setups.
4. USB-C: Same Plug, Wildly Different Capabilities
The #1 source of confusion! USB-C ports look identical but vary drastically:
| Type | Capabilities | Typical Use |
|---|---|---|
| Charge-Only | Power only (e.g., 5V/2A) | Basic phone chargers |
| USB 2.0 Data | 480 Mbps data | Mice/keyboards |
| USB 3.x (Gen1/Gen2) | 5–20 Gbps data | External SSDs, docks |
| DP Alt Mode | Video + Data + Power | Monitors, laptop docking |
| Thunderbolt 3/4 | 40 Gbps + Video + Power | MacBooks, eGPUs, 4K docks |
Never assume a "free phone cable" is a universal solution!
Check for:
Labels (e.g., "USB 3.2 Gen 2," Thunderbolt logo)
E-Marker chips (mandatory for video/power)
Certifications (USB-IF, Intel Thunderbolt)
5. Fiber Optic Cables: Long-Distance, Zero Interference
When HDMI/DP runs exceed 5–10m, copper cables fail. Fiber optics solve this:
Key Advantages:
Laser-based signal → Immune to EMI/RFI.
Reaches 30m–100+ meters.
Thin, lightweight → Ideal for home theaters/boardrooms.
Caveats:
Unidirectional—check arrow direction!
Expensive—overkill for short runs.
May require external power/chips.
6. Shielding & Gauge Matter: The Hidden Cause of Noise, Drops & Artifacts
Beyond bandwidth, shielding and conductor gauge (AWG) are critical:
| Issue | Result | Solution |
|---|---|---|
| No/cheap shielding | EMI interference (office/factory) | Use dual-shielded (foil + braid) |
| Thin conductors (e.g., 34 AWG) | Speed drops over distance | Choose ≤24 AWG for long runs |
| Poor build quality | Overheating, port damage | Avoid no-name cables! |
Bad cables can fry ports or devices
7. The Takeaway: Match Your Cable to Your Gear!
Stop treating cables as afterthoughts—your gear’s performance depends on them.
| Scenario | Solution |
|---|---|
| 4K/120Hz gaming | HDMI 2.1 or DP 1.4+ |
| Phone-to-display output | USB-C w/ DP Alt Mode |
| Long-distance AV | Fiber Optic HDMI/DP |
| High-speed data transfer | USB 3.2 Gen 2 / Thunderbolt 4 |
Remember: Your signal quality lives and dies by the cable—not the device.
